First, I want to extend my sincere thanks to Protectli for providing the VP6650 for review. This powerhouse of a network appliance is impressive with its capabilities and build quality, and I'm excited to share the unboxing and future post with detailed insights/testing.

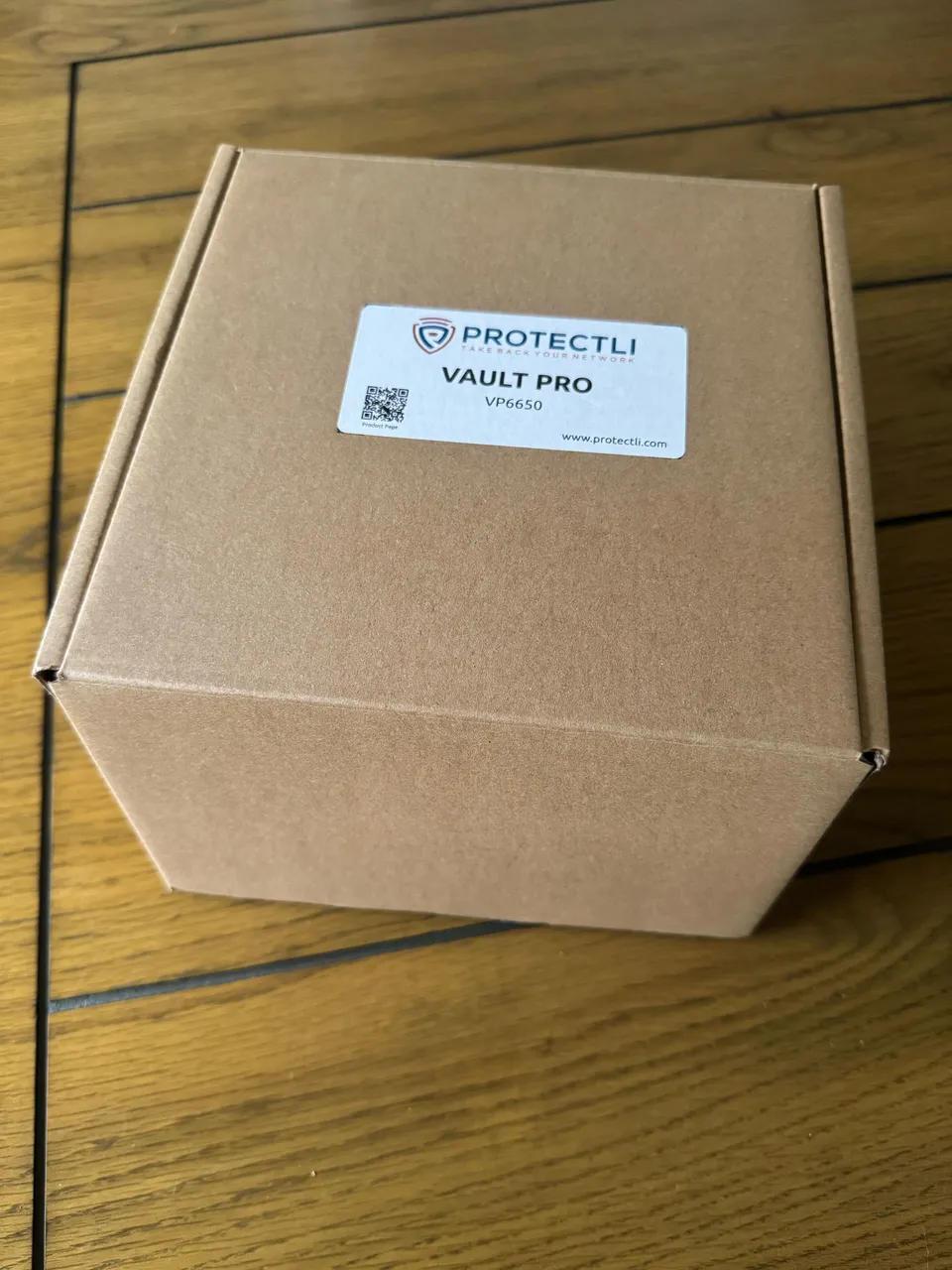

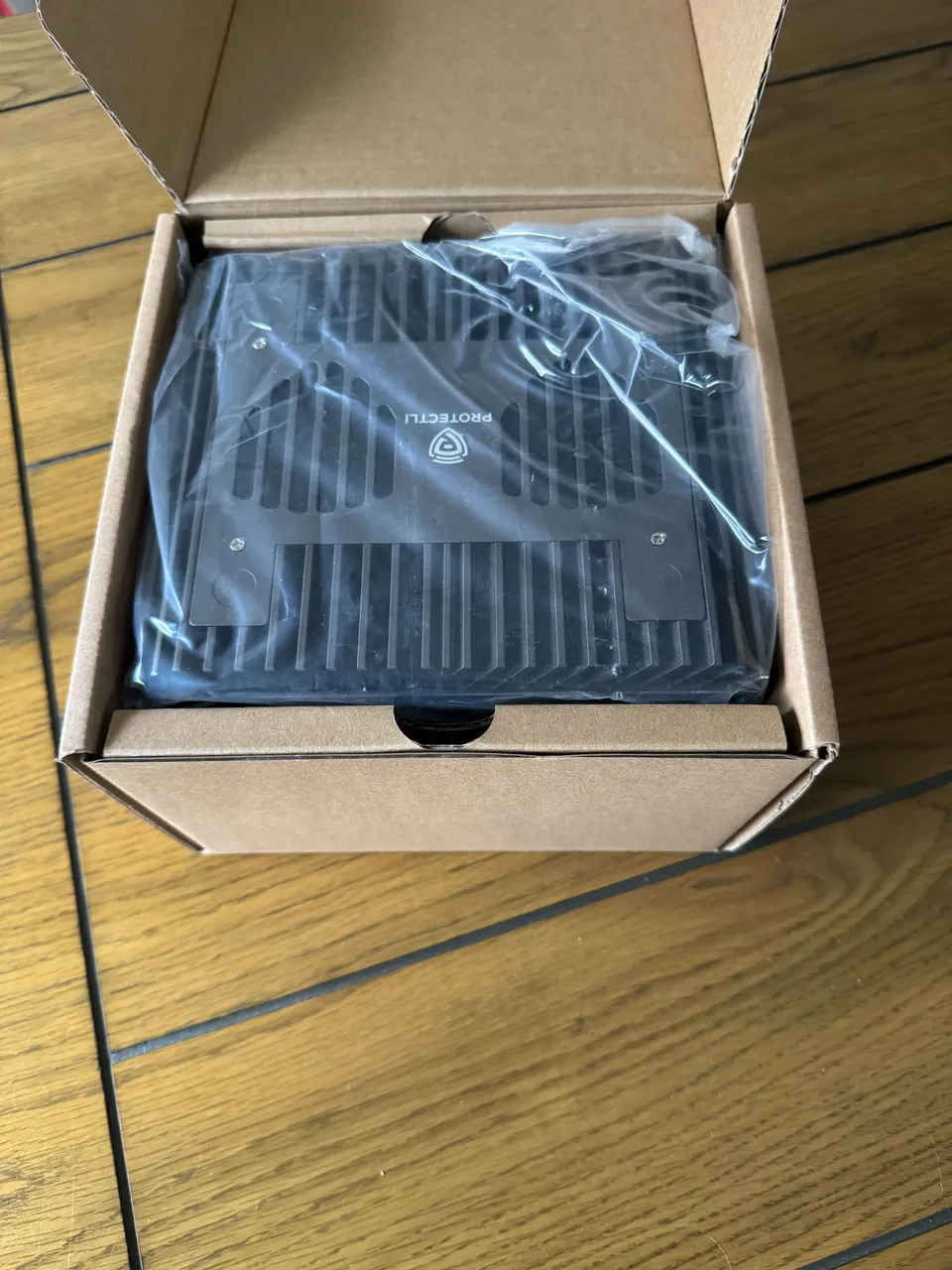

Protectli's attention to detail is immediately evident in their packaging design. The VP6650 arrives in a surprisingly compact box that maximizes space efficiency while ensuring complete protection of the device. Unlike many enterprise hardware vendors who use excessive packaging materials, Protectli has opted for a minimalist yet highly effective approach. The appliance is securely nestled within form-fitted padding, with accessories neatly organized in separate compartments. This thoughtful packaging not only protects the device during shipping but also makes the unboxing experience feel premium and professional.
The compact nature of the packaging also reflects Protectli's environmentally conscious approach, minimizing waste while maintaining the highest standards of protection for their premium hardware. This level of consideration in packaging design sets a positive first impression even before reaching the device itself.
First Impressions
Build Quality

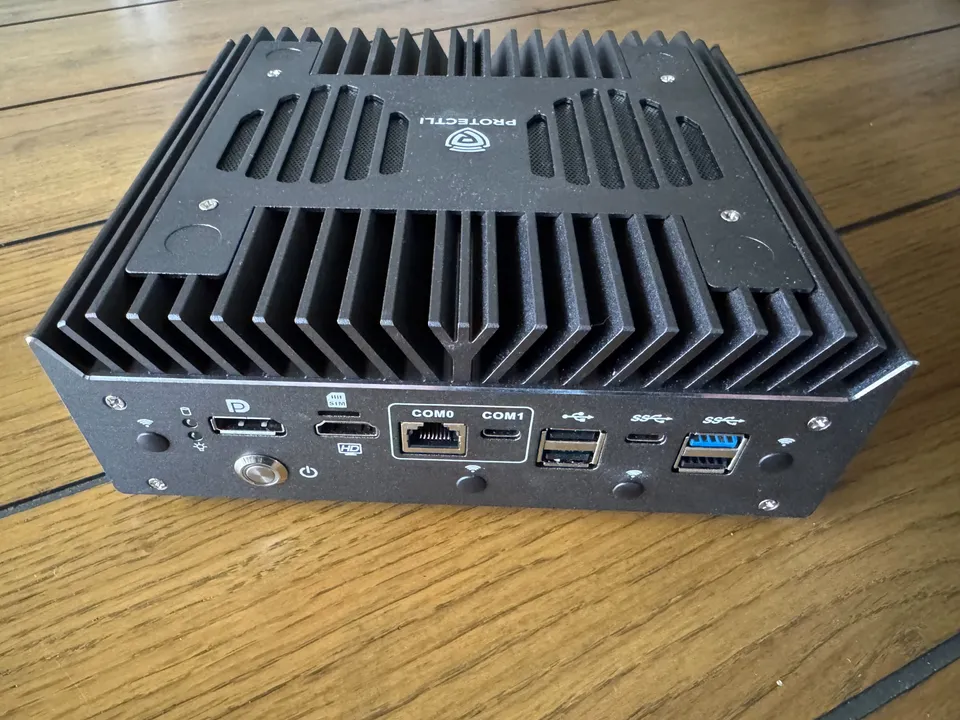

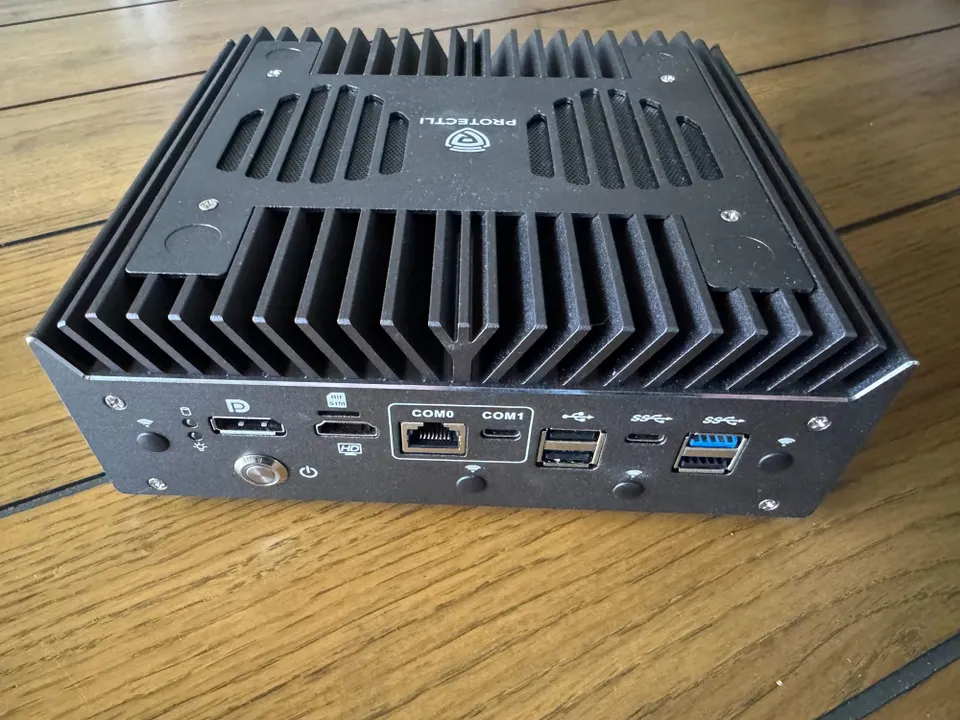

Right out of the box, the VP6650's build quality is evident. The metal chassis feels substantial and well-constructed. The unit has a pleasant heft to it that speaks to its enterprise-grade construction.
What's in the Box
The VP6650 arrived in a professionally packaged box containing:
- Protectli VP6650 network appliance
- US/CA Power Cable (IEC Type "B")
- Quick start documentation
- Mounting hardware
- Warranty information
Hardware Specifications
The review unit came configured with:
- Intel® Core™ i5-1235U (64 bit, Max 4.4 GHz) Options for Intel® Core™ i3 or i7 available
- Intel® AES-NI Supported
- Virtualization Intel® Vt-x, Vt-d
- Option for TPM 1x Trusted Platform Module, TPM 2.0
- Dual 32GB Crucial DDR5-4800 SO-DIMM memory (64GB Max total)
- Intel® Iris Xe Graphics, 1x HDMI 1.4, 1x DP 1.4a
- Audio Audio over HDMI
- 4TB Kingston NVMe NV2-4000G storage
- Option for M.2 NVMe SSD
- Option for WiFi Module
- Option for 4G LTE Modem
- 6 network ports
- 4x 2.5GbE
- 2x 10GbE SFP+
- AMI (Traditional) BIOS (Option for Coreboot)
- Internal I/O
- 1x M.2 2280 M-Key PCIe 4.0 x4 (NVMe)
- 2x SATA Header, 2x SATA Power
- 1x M.2 2230 E-Key PCIe 3.0 x1 for WiFi
- 1x M.2 3052 (LTE)
- 1x USB 2.0 Header
- 1x Trusted Platform Module Header (2x6 pin)
- 1x CMOS Reset (2 pin)
- 2x PWM Fan Headers (4 pin, 12v) - for included PWM CPU fan located on chassis. The connected fan is 60x60x10MM.
- 1x Front Panel Header (9 pin)
- External I/O
- 1x RJ-45 COM, 1x USB Type C COM Port
- 1x USB 3.2 Gen 2 Type C with DisplayPort, 1x USB 3.2 Gen 2 Type A, 3x USB 2.0 Type A
- Video Output - 1x Display Port and 1x HDMI
- 1x Nano (4FF) SIM Holder
- 6x WiFi/LTE Antenna Mounting Holes
- 1x 12V DC Power Jack, Threaded
- Power Usage Idle: 12W, Max: 100W
- US/CA Power Cable (IEC Type "B")

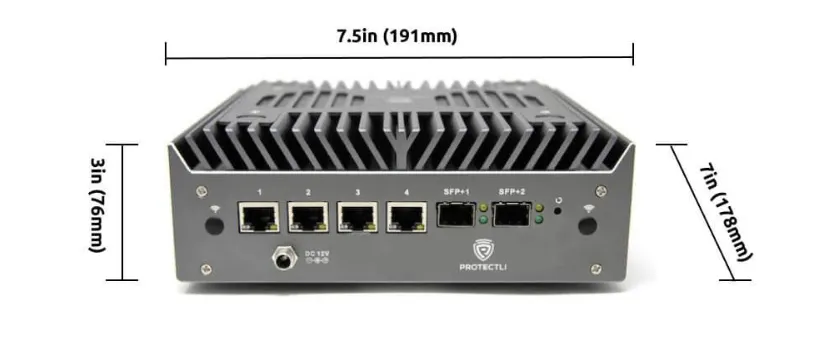

- Chassis Dimensions 7.5 x 7 x 3 in, 191 x 178 x 76 mm
- Weight 5 lbs, 2.3 Kg
- 2-Year Standard Warranty
- Included Accessories and Components
- 120W Power Supply with barrel connector
- US/CA Power Cable (Other regional power cables available)
- USB Type-C (with Type-A adapter) to USB Type-C Serial Console Cable
- 8x SSD mounting screws
- 2x SATA power cables
- 2x SATA data cables
- Heat sink with thermal pad and mounting hardware
- 4x M2 screws
- VESA Bracket mount with hardware
- Quick Start Guide
First Impressions

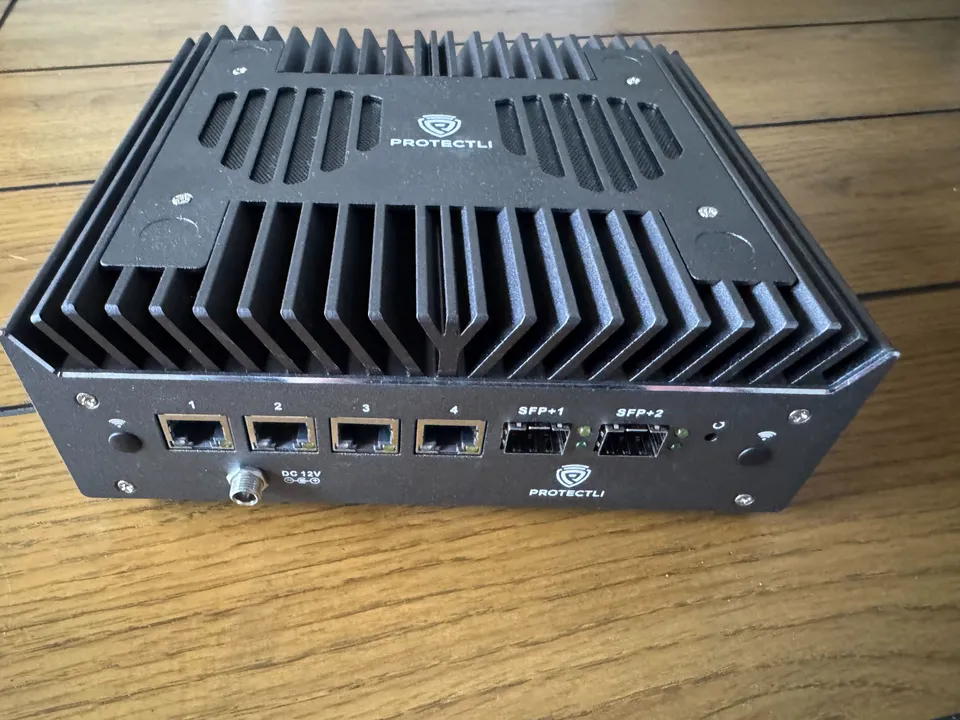

The VP6650 arrives in a compact yet robust form factor that immediately speaks to its enterprise-capable build quality. The metal chassis not only provides excellent durability but also serves as an effective passive cooling solution, but the additional active fan built into the chassis enhances the cooling potential. The six network ports are clearly labeled and easily accessible, making initial setup straightforward.
Performance and Capabilities
Processing Power
The Intel i5 processor provides substantial computing power for network applications. The additional low power consumption in comparison to the Intel i7 adds additional benefit. Whether you're running:
- Advanced firewall configurations
- Network monitoring tools
- Virtual machines
- DNS servers
- IDS/IPS systems
The VP6650 should handle these tasks with impressive efficiency.
Memory and Storage
The 64GB of DDR5 memory is a standout feature, providing ample headroom for:
- Multiple virtual machines
- Large routing tables
- Extensive caching
- Memory-intensive applications
The 4TB NVMe drive offers exceptional storage capacity and speed, perfect for:
- System logs
- Network monitoring data
- Local backups
- Virtual machine storage
Networking
Four 2.5GbE and two 10GbE SPF+ ports provide flexible network segmentation options:
- High-speed connectivity options
- Dedicated WAN connections
- DMZ setup
- VLAN configurations
- High-availability pairs
- Separate network zones
Use Cases
The VP6650 is particularly well-suited for:
- Small to medium business deployments
- Home lab environments
- Edge computing applications
- Network security applications
- Virtualization hosts
Build Quality
The construction quality is noteworthy:
- Solid metal chassis
- High-quality port connectors
- Robust power connection
- Durable mounting options
Value Proposition
As configured, $1,308.00 (bare-bones the appliance is 749), the VP6650 represents a significant investment, but the value becomes clear when considering:
- Enterprise-capable components
- Extensive memory configuration up to 64GB DDR5 max
- Generous storage capacity
- Multiple network ports
- Professional support
- 2-year warranty
What's Coming Next
In upcoming posts, I'll be diving deep into:
- Performance Testing
- Network throughput
- CPU performance under load
- Memory handling
- Storage speed tests
- Operating System Compatibility
- pfSense testing
- OPNsense testing
- Proxmox virtualization
- XCP-ng deployment
- Use Case Scenarios
- Firewall configuration
- Router deployment
- Virtual machine host
- Network security applications
- Thermal and Power Analysis
- Temperature under load
- Power consumption metrics
- Noise level testing
- Long-term stability
Initial Thoughts
The VP6650 shows tremendous promise as a versatile network appliance. The build quality and component selection suggest this unit is designed for serious network applications. At $1,308.00 as configured, it represents a significant investment, but the hardware specifications and build quality indicate good value for professionals and enthusiasts requiring reliable, high-performance networking equipment.
Early Impressions
Pros:
- Excellent build quality
- Premium component selection
- Professional design
- Clean port layout
- Efficient cooling design
Cons:
- Premium price point
While the review unit comes in at $1,308.00 with its robust configuration of 64GB DDR5 memory and a 4TB NVMe drive, it's worth noting that Protectli offers more budget-friendly options for those looking to build their setup gradually. The bare-bones VP6650, priced at just over $700, provides the same excellent chassis, Intel i5 processor, and six-port configuration without memory, storage or other accessories. This approach allows tech enthusiasts and professionals to take advantage of sales on components like DDR5 memory and NVMe drives, potentially saving hundreds of dollars. For instance, by watching for deals on memory and storage from reputable retailers, you could achieve a similar configuration to our review unit at a significantly lower total cost. This flexibility in configuration not only makes the VP6650 more accessible but also allows users to tailor the build to their specific needs and budget constraints while still maintaining the high-quality foundation that Protectli provides.
The VP6650 stands out as a premium option in the network appliance market, offering enterprise-grade features in a compact form factor. While the price point may be higher than consumer-grade alternatives, the quality, performance, and reliability justify the investment for those requiring a professional-grade solution.
Looking Ahead
Stay tuned for the upcoming series of detailed posts where I'll put the VP6650 through its paces. I'll be testing various configurations and use cases to provide a comprehensive view of this appliance's capabilities.
Special thanks again to Protectli for providing this unit for review. The initial unboxing and inspection suggest an impressive piece of hardware to work with, and I'm looking forward to sharing detailed performance analysis and real-world testing results in upcoming posts.
What specific aspects of the VP6650 would you like to see covered in our future testing?
